Anti-Terrorist Gate Simulation Crash Test

Anti-Terrorist Gate Simulation Crash Tests

 Modeling of anti-ram type entrance doors is carried out by our laboratory, performing simulation tests, reporting and issuing the necessary certificates in accordance with the test conditions of vehicles in accordance with ASTM standards. Requiring high security; government institutions, public buildings, military buildings, private residences, etc. High security door systems can be used at many entrances. When designing door systems, they should be designed with certain standards. If this design meets the necessary criteria , The Anti-ram gate system should be manufactured accordingly. The most important point that needs to be explained and emphasized here is the control stage of the design. The design should be modeled down to the smallest screw in 3d solid modeling programs. The type of material used, yielding, breaking, torsion moments, the most appropriate meshing process after solid modeling etc. Many data are the building blocks of a unified chain of transactions. The smoother and more precise the modeling is the more realistic the results will be.

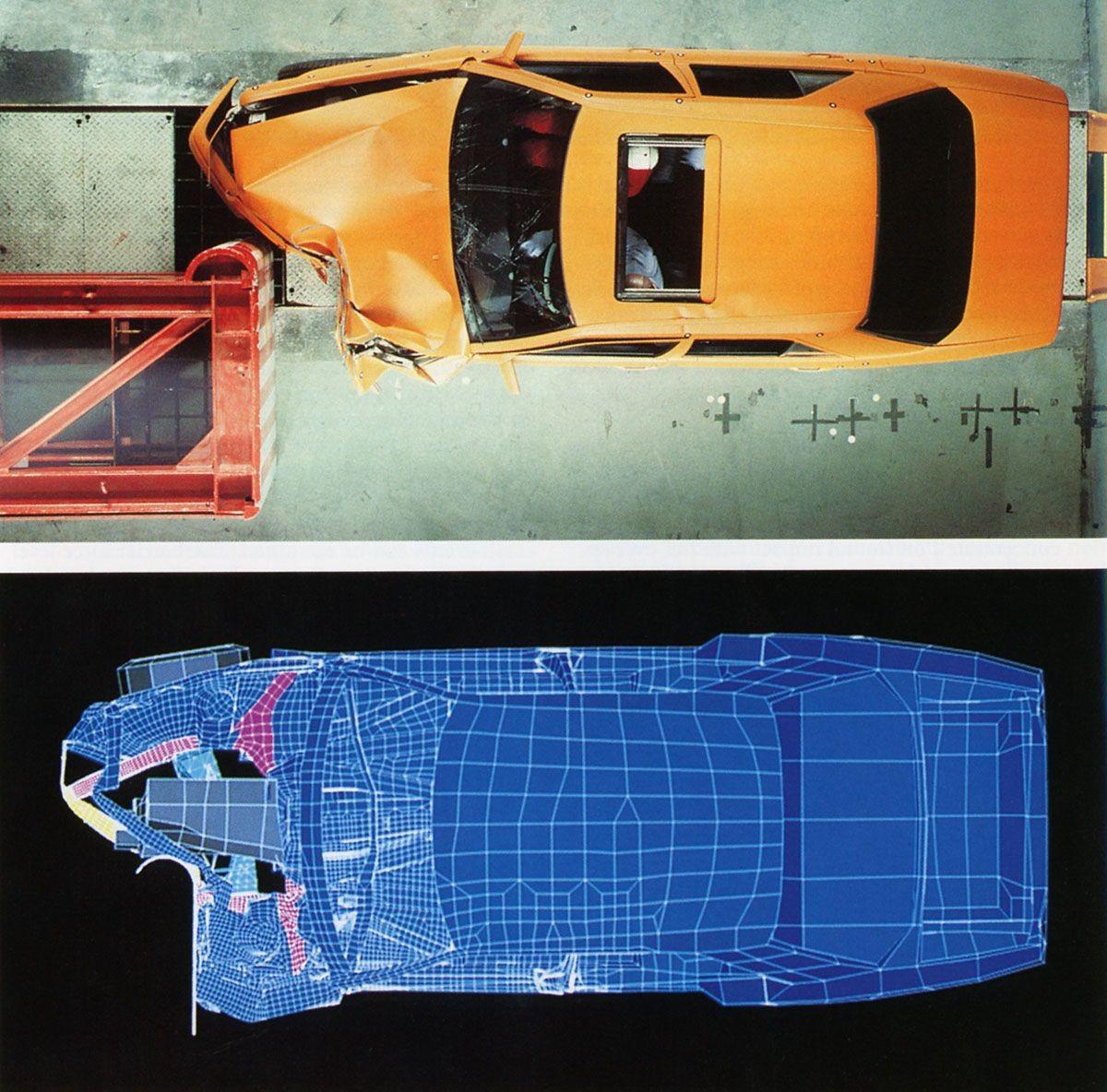

 Below is a comparison of crash tests of the same vehicles simulated with real tests . If you pay attention here, the results were obtained exactly and with an accuracy level of 98%.

Example 1 ;

Example 2 ;

When the examples are examined, it is seen how realistic the accuracy is. It takes some time to manufacture and test the anti-terrorist door systems. For this reason, companies generally turn to simulation tests. Our company also provides real door crash testing services. But generally, our advice to our customers is to model and simulate one-to-one before the door is manufactured. If this simulation passes the test, it is to produce the door with the same quality and put it into the real test. Door systems are modeled by our customers in a structure that will block anti-terrorist attacks according to their own manufacturing features and sent to us. Our company's R&D engineers and laboratory officials can assist in the designs of our customers during the modeling phase.

Our company modeled doors; ASTM tests at American standards K12 - K8 - K4 level, M30 - M40 - M50, European standard BSI PAS68: 2013 level, IWA 14-1: 2013 levels. It certifies.

Brief descriptions of all standards are given below.

1. ASTM F2656 american standard

2 . M30 / M40 / M50 American new impact test rating standard table

3. K4 / K8 / K12 American vehicle gate crash test rated value table

4. IWA 14-1 :2013 European vehicle barrier crash test standards

The crash-test certified door systems that we have tested are as follows.

1. Sliding v-gate anti-terrorist automatic gate system impact test rating ( PAS 68 : 2013 , 7500 kg. 80 km/h )

2. Anti-ram terra v-gate automatic gate system with circular opening wings crash test certificate ( ASTM M50 , 7500 kg. 80 km/h )

3. High-security crash tested bi-folding door / bi-fold gate system certificate (K12, 7500 kg. 80 km/h)

4. PSI PAS68 : 2013 Sliding gate system crash test rated ( PAS 68 / 7500 kg. 80 km/h )
