Anti-Ram Barrier Impact Test , Crash Test Labs IWA 14-1 / K12 - K8 -K4 / ASTM M30 , M40 , M50 / Pas68 Standarts

Rob-Sav Real Barrier Crash Test Practices

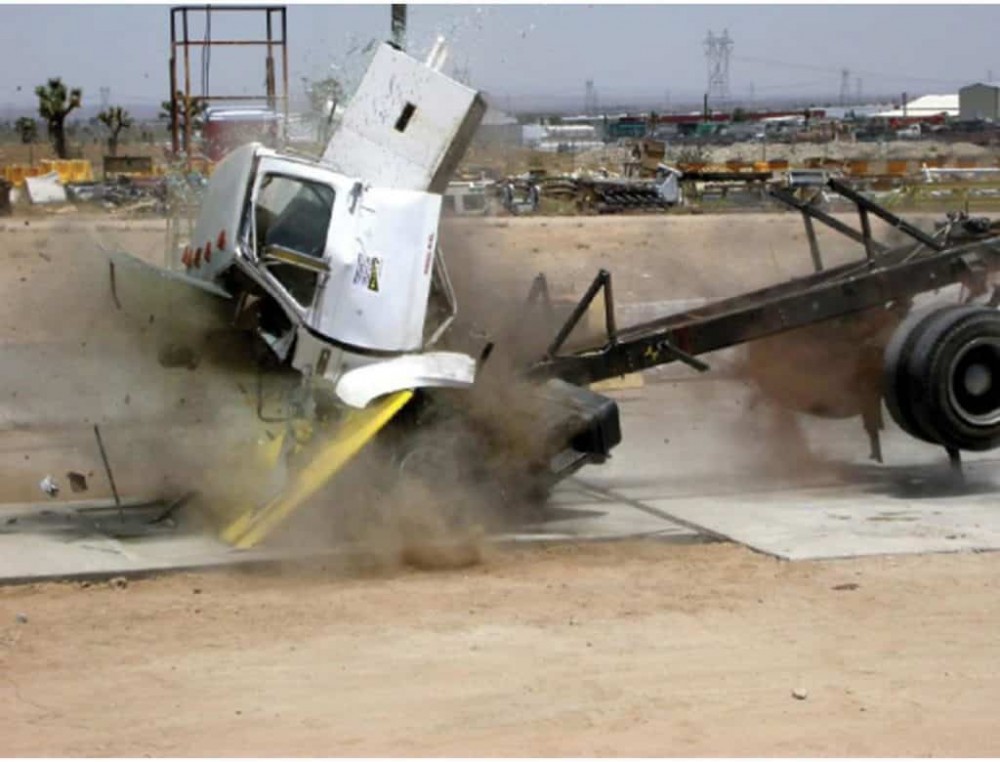

 Robsav, as an independent testing organization, has been granted ASTM American standards K12 - K8 - K4 level, European standards PAS68 crash tests, ASTM M30, M40 and M50 test certificates for anti-terrorist barrier systems by our company as an authorized institution. These high security barriers, which are specially designed to block attacks with heavy tonnage trucks, designed and produced by the companies in their own standards, are delivered to our company. The desired standard is notified to our laboratory. The device is delivered to our test center . If it is a device to be dug and buried, the device is mounted on the ground by meeting the appropriate standards again. And vehicles conforming to the relevant standard are crashed into the barrier at a certain speed and tonnage weight. As a result of the collision, the damage to the barrier is determined as 100%. The barrier is operated after the collision . It is determined whether the barrier is working or not.

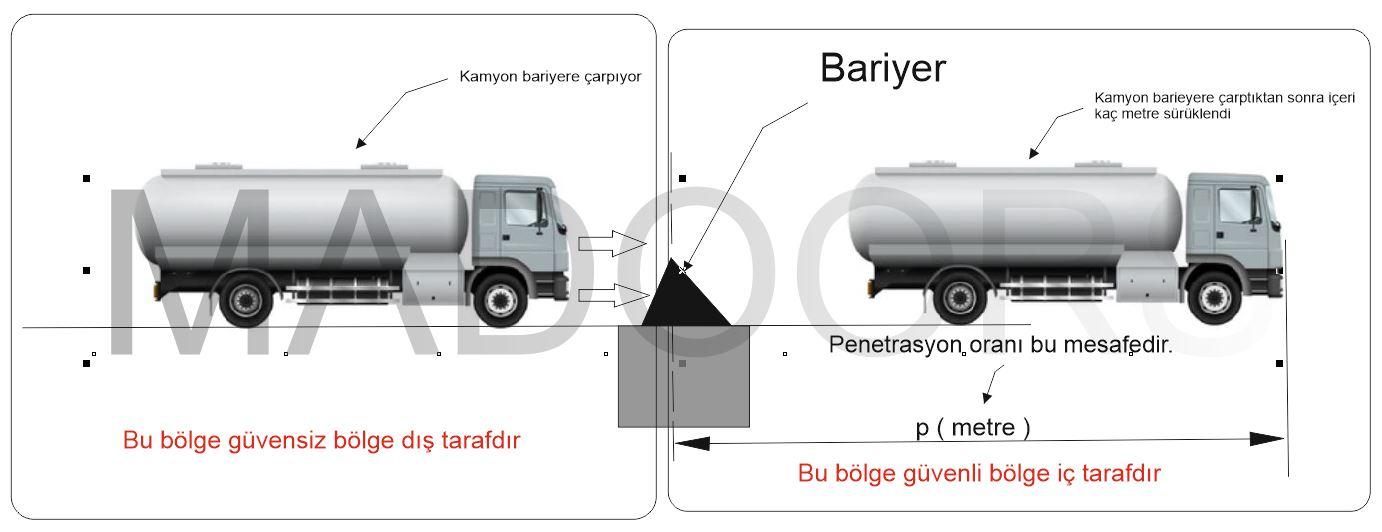

 With these criteria, information is compiled with video and photographs, reports are prepared, and the product is certified. If the barrier breaks off from its hinges, the product cannot pass inspection. If it is damaged and becomes inoperable, the product cannot pass inspection. If the vehicle passes behind the barrier after hitting the barrier, the product cannot pass inspection. Penetration rate , ie ; The vertical length that the truck has been driven behind the barrier axis is recorded in the report.

Our barrier crash tests against real anti-terrorist vehicles are as follows.

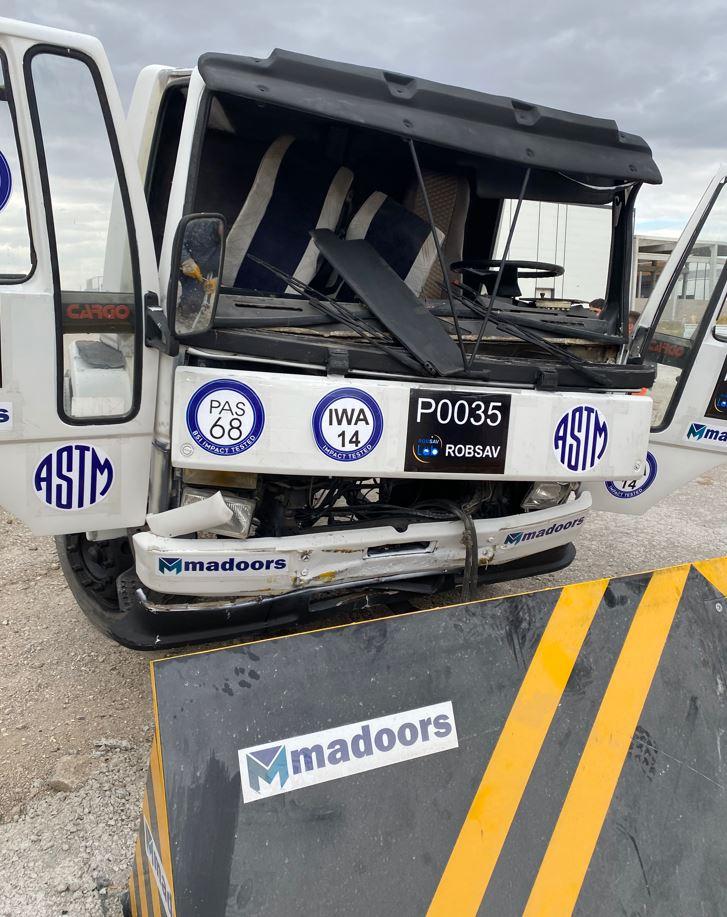

1. Road blocker embedded type road block barrier real crash test in line with ASTM K12 / M50 / Pas68 / IWA standards

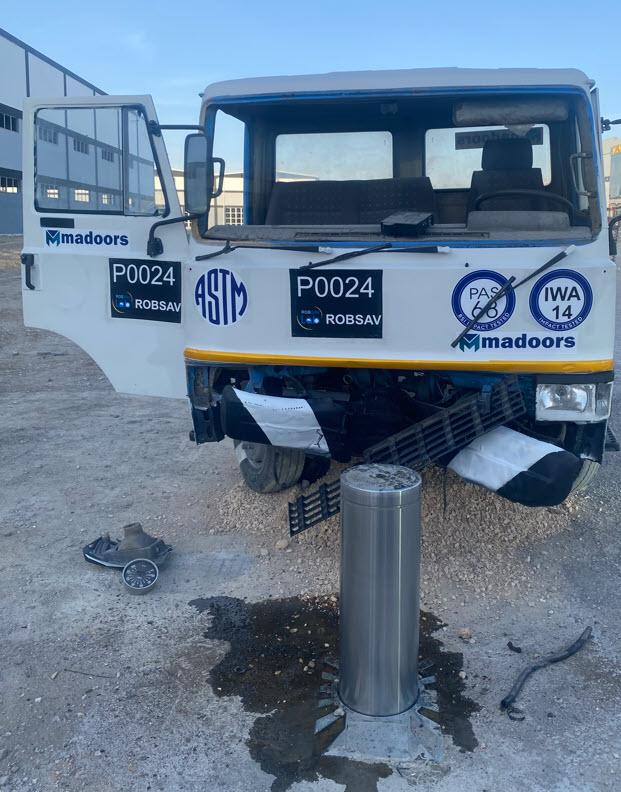

2. Bollard barrier real crash test rated in accordance with ASTM K12 / M50 / PSI Pas68:2013 / IWA 14-1:2013 standards

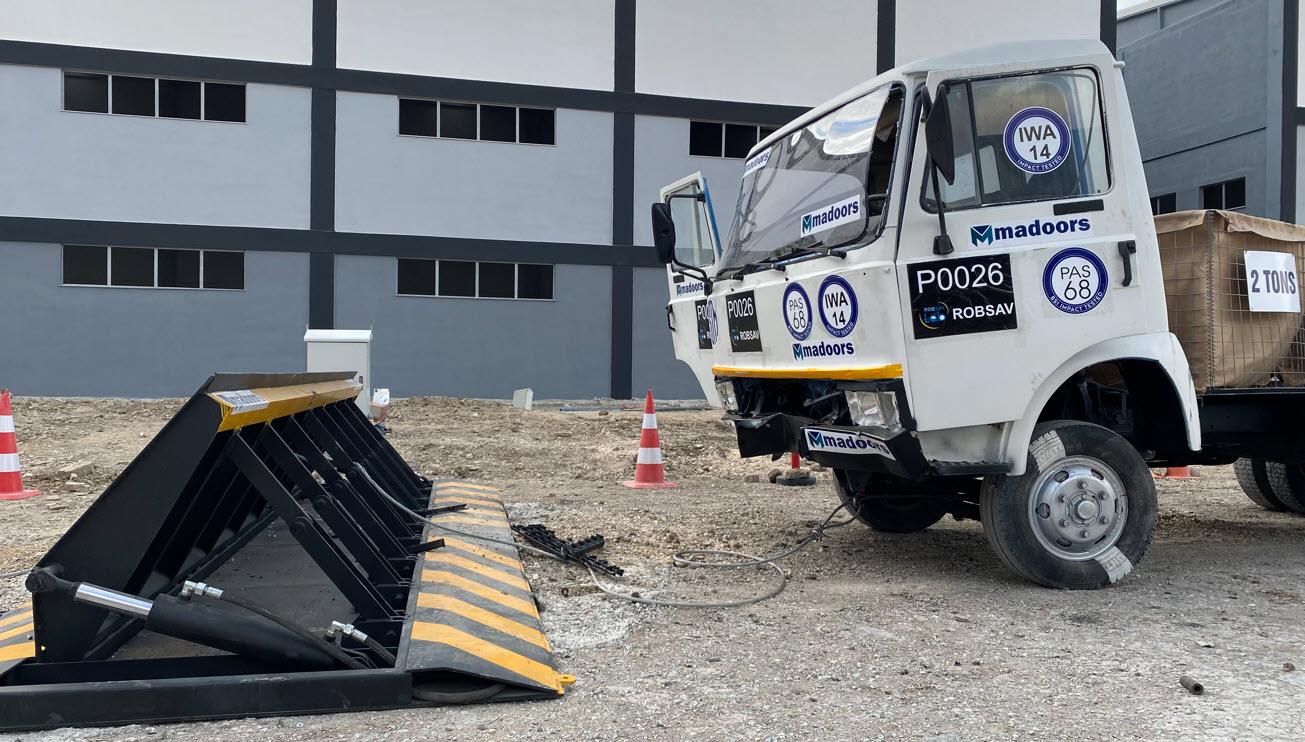

3. Surface mounted , portable road blocker real crash test in accordance with ASTM K12-K8-K4 / M50-M40-M30 / Pas68 / IWA 14-1:2013 N2 / N3 / N3C standards

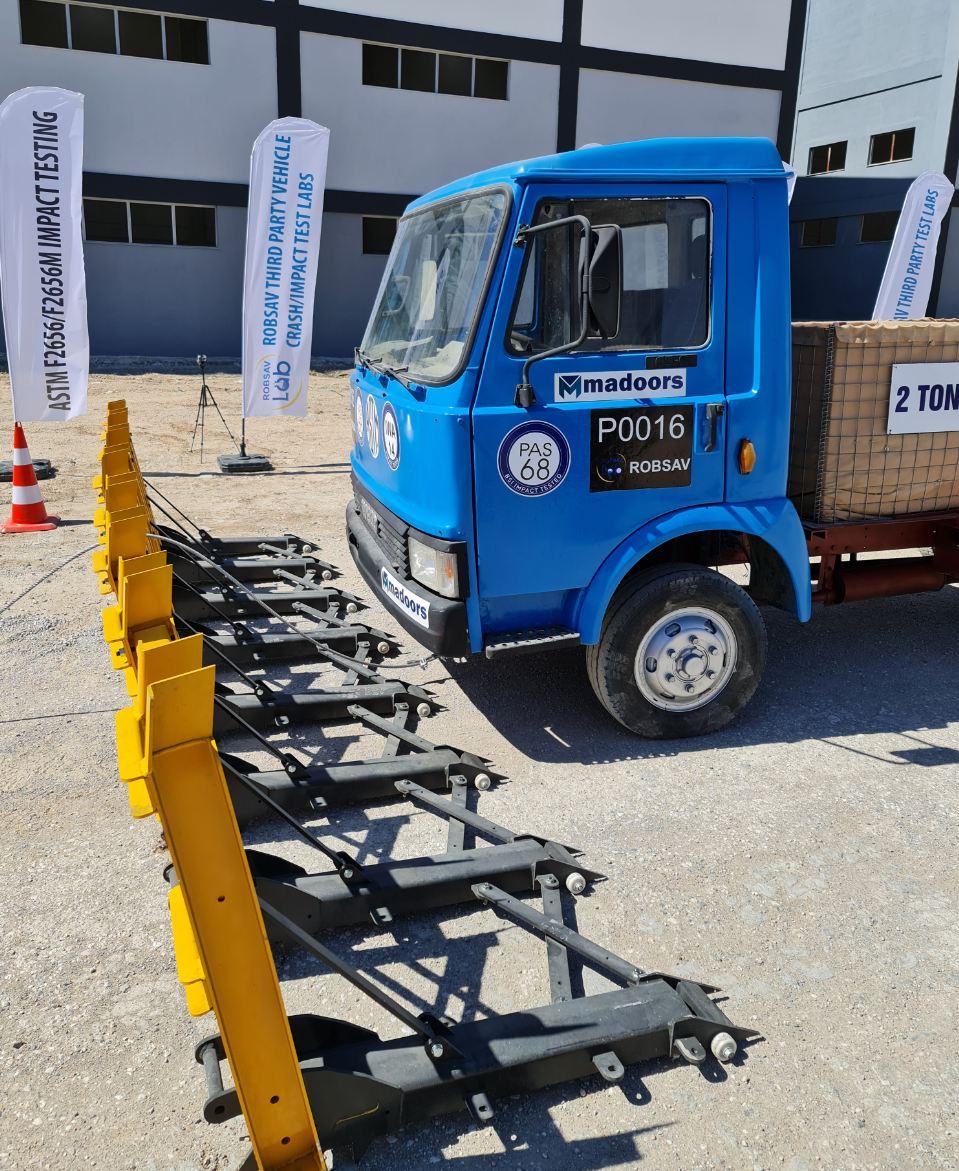

4. Portable manual use road blocker real crash test in accordance with ASTM K12 / M50 / BSI Pas68:2013 / IWA 14-1:2013 standards
